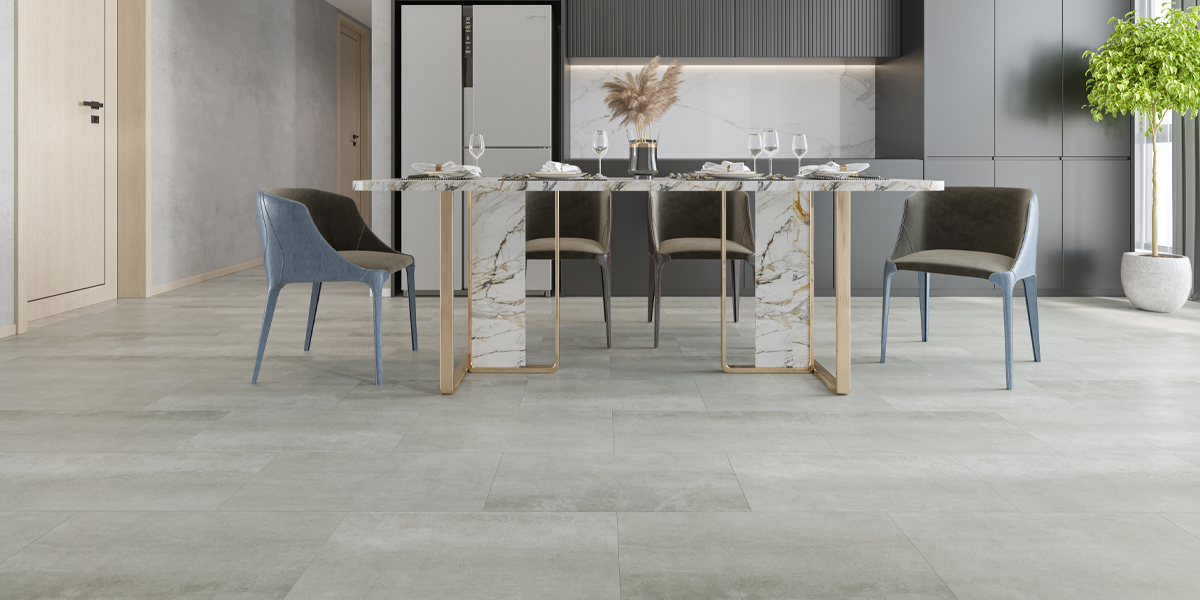

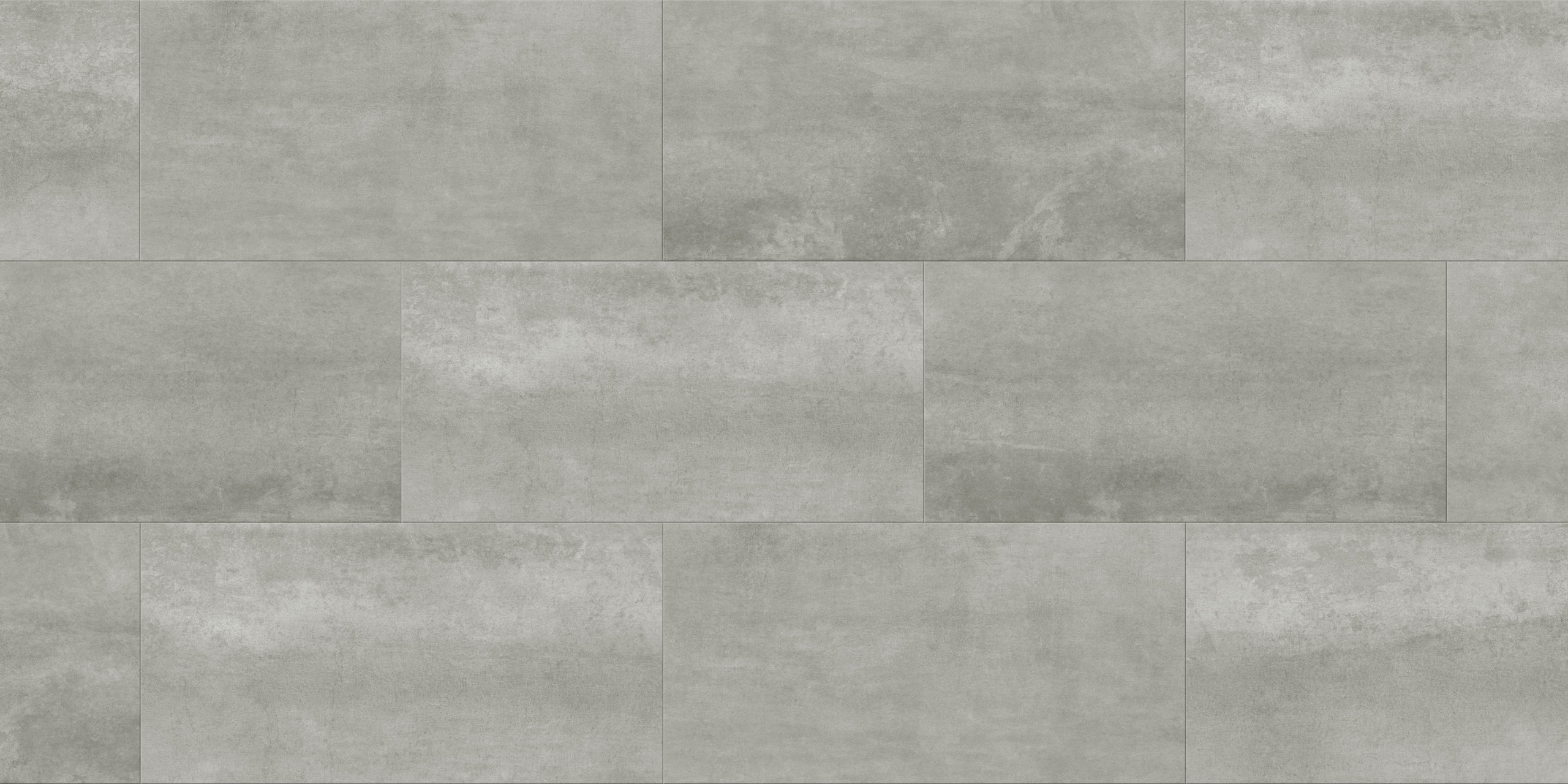

Ice Castle SolidCore Ultra5G By Twelve Oaks

Collection: SolidCore Ultra5G
Construction: SPC Vinyl
Thickness: 6 mm
Wear Layer: 0.5 mm (20 mil)
Finish: 2-pass UV Cured Urethane Finish
Underlayment: 1.5 mm IXPE Attached
Locking System: Välinge® 5G
Installation: Floating Click System
Look: Ultra Realistic

Residential Warranty: Lifetime
Commercial Warranty: 15 Years

Plank Width Options: 180 mm / 225 mm
Plank Length Options: 1220 mm / 1522 mm
Tile Size: 305 mm x 610 mm

Certification: FloorScore Certified (Low VOC, Phthalate-Free, No Formaldehyde, 100% Recyclable)

Class: ASTM F1700-18 Class III, Type B (Embossed)
Residual Indentation: ASTM F1914-17 — Pass
Slip Resistance: ASTM C1028-07 — Dry: 0.84 / Wet: 0.77
Static Load: ASTM F970-17 — 0.07 mm
Dimensional Stability: ASTM F2199-09 — Pass
Heat Resistance: ASTM F1514-03 — Pass
Chemical Resistance: ASTM F925-13 — Pass
Light Resistance: ASTM F1515-15 — Pass
Critical Radiant Flux: ASTM E648-17 — Class I
ΔIIC: ASTM E2179-03 — 25
IIC: ASTM E492-09 — 71
STC: ASTM E90-09 — 71

60″ Plank Size: 1522 mm x 225 mm x 6 mm
60″ Carton Size: 1530 mm x 230 mm x 45 mm
Sq. Ft. per Carton (60″): 22.2
Weight per Carton (60″): 43 lbs

48″ Plank Size: 1220 mm x 180 mm x 6 mm
48″ Carton Size: 1235 mm x 195 mm x 65 mm
Sq. Ft. per Carton (48″): 23.7
Weight per Carton (48″): 46 lbs

Tile Size: 610 mm x 305 mm x 6 mm
Tile Carton Size: 615 mm x 310 mm x 65 mm
Sq. Ft. per Carton (Tile): 20
Weight per Carton (Tile): 40 lbs

60″ Pallet Size: 1530 x 910 x 730 mm
Volume (60″): 1.02 m³
Cartons per Pallet (60″): 56
Sq. Ft. per Pallet (60″): 1,243.2
Weight per Pallet (60″): 2,408 lbs

48″ Pallet Size: 1235 x 975 x 680 mm
Volume (48″): 0.82 m³
Cartons per Pallet (48″): 50
Sq. Ft. per Pallet (48″): 1,185
Weight per Pallet (48″): 2,300 lbs

Tile Pallet Size: 1230 x 620 x 1170 mm
Volume (Tile): 0.89 m³
Cartons per Pallet (Tile): 72
Sq. Ft. per Pallet (Tile): 1,440
Weight per Pallet (Tile): 2,880 lbs
