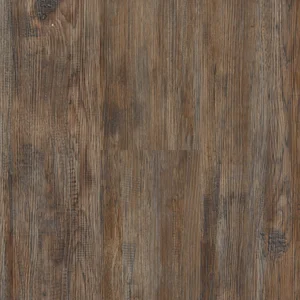

008 Heritage Oak StoneCast Mayfair ll 568

The 5G drop lock joint is the reason Heritage Oak goes down quickly: the short end of each board drops into place rather than needing a tapping block, which cuts the time we spend in your rooms. This Mayfair ll plank measures 8.0 mm over a five-layer WPC core with a cushion already bonded underneath, so no underlay is needed and impact sound is absorbed at the plank. Tested figures include STC 63, IIC 71 and HIIC 89. A 20 mil UV-cured urethane wear layer guards the print, and four-sided colour-enhanced bevels frame each board. It can go on, above or below grade. 22FLOORING supplies and installs Heritage Oak across Toronto and the GTA, with vinyl installation from $3.20 per square foot.

Size: 9″ wide, random lengths up to 72″
Thickness: 8.0 mm
Construction: 5-layer WPC
Wear Layer: 20 mil / UV-Cured Endurium™ enhanced urethane protection
Surface Effect: Embossed in Register
Edge Treatment: Four-sided color-enhanced bevel
Installation: 5G® drop lock click floating floor (on, above, or below grade)
Attached Cushion: For superior sound abatement and easier installation
Coordinating Moldings: See nextfloor.net for more details

Packaging: 5 layers per carton (40 lbs)
Coverage: 22.5 sq ft per carton
Cartons per Pallet: 52
Pallets per Container: 24

Testing
Critical Radiant Flux ASTM E648 Class I
Surface Flammability DOC FF 1-70 Passed
Coefficient of Friction ASTM D2047 Passed > 0.6
Sound Transmission Class (STC) ASTM E90 63
Impact Insulation Class (IIC) ASTM E492 71
High Frequency Impact Insulation Class (HIIC) ASTM E3222 89
Certifications FloorScore Certified, Phthalate Free, 100% Virgin PVC

Warranties
Lifetime Waterproof
Lifetime Residential Wear
Lifetime No Cupping*
30-Year Commercial Wear†
