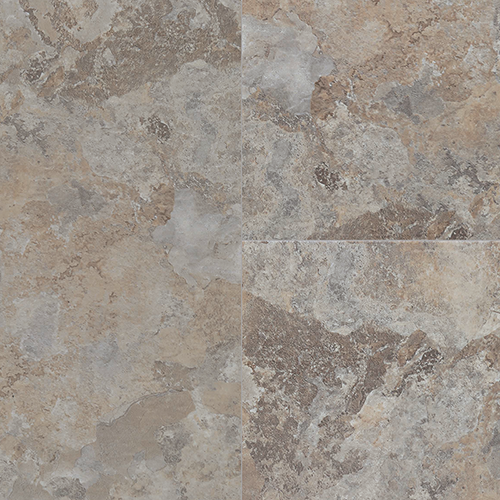

014 Pizarra Arena LVT Tile 414 By Next Floor

Pizarra Arena (014) is sold as a tile and as a plank in Next Floor's Tile 414 collection: 18 inches square, or 4 inches by 36 inches, each piece 3 mm thick. Square edges mean the pieces butt together without a groove, and at 28 mil the UV-cured urethane top is thick for vinyl this slim. Bonding is by full spread adhesive with NEXT 1200, so the result is firm and quiet underfoot, with acoustic ratings of STC 64, IIC 69 and HIIC 89. The static load limit is 1300 lbs. Residential wear is covered for life and commercial wear for 30 years. 22FLOORING supplies and installs Pizarra Arena across Toronto and the GTA, with glue-down vinyl installation from $5.50 per square foot, including glue.

Size:
Plank 4″ x 36″ x 3 mm thick
Tile 18″ x 18″ x 3 mm thick

Wear Layer: 28 mil / UV-Cured Urethane
Edge Treatment: Square Edge
Installation: Full Spread Adhesive
Recommended Adhesive: NEXT 1200™

Packaging:
Plank 36 pieces per carton (45 lbs)
36 SF per carton
52 cartons per pallet
22 pallets per container
Tile 16 pieces per carton (45 lbs)
36 SF per carton
52 cartons per pallet
22 pallets per container

Testing:
Critical Radiant Flux ASTM E648 Class I
Surface Flammability DOC FF 1-70 Passed
Coefficient of Friction ASTM 2047 Passes >0.6
Static Load Limit ASTM F970 1300 lbs
Sound Transmission Class (STC) ASTM E492 64
Impact Insulation Class (IIC) ASTM E989 69
High Frequency Impact Insulation Class (HIIC) ASTM E3222 89
FloorScore Certified
Phthalate Free
100% Virgin PVC

Product Classification: ASTM F1700 Class III, Type B

Warranties:
Lifetime Residential Wear
30-Year Commercial Wear
